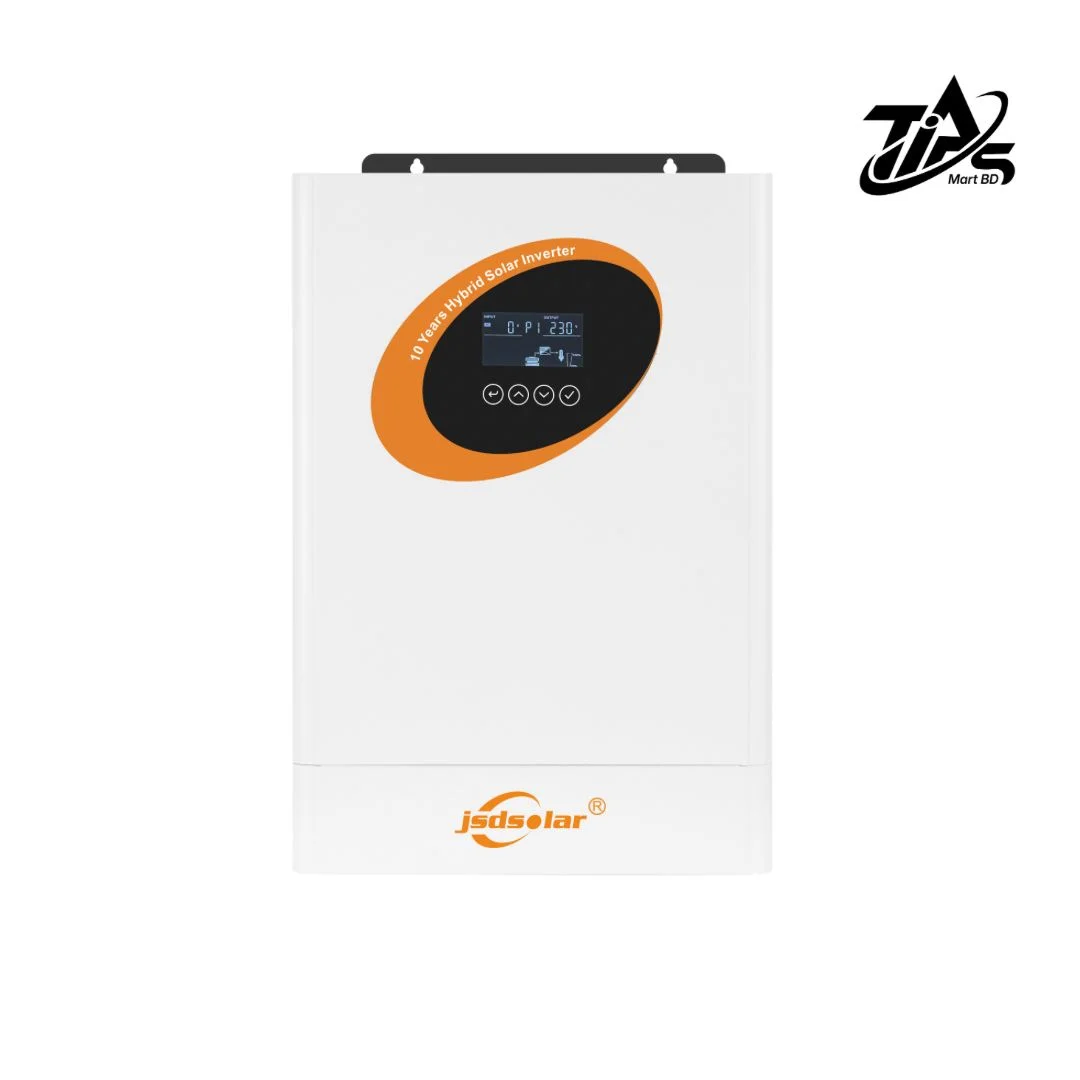

24V 4000w Single Phase Hybrid Solar Inverter 220V Output, J4000HC
৳139,990৳160,000-13% OFF
In Stock
Quantity:
24V 4000W Pure Sine Wave Inverter | 220V Output | Single Phase
Maximize energy efficiency with a 24V 4000W pure sine wave inverter designed for seamless integration into solar systems, off-grid setups, and emergency backup solutions. Featuring advanced thermal management, robust overload protection, and 95%+ conversion efficiency, this inverter supports heavy-duty appliances, tools, and sensitive electronics. Its compact, portable design ensures easy installation, while A-grade components and 6000+ cycle durability guarantee long-term reliability. Monitor real-time performance via Bluetooth connectivity, and enjoy rapid 2-hour charging for uninterrupted power. Ideal for residential, RV, and mobile applications, it delivers stable 110V/220V AC output even under extreme conditions
Key features
- Built-in 100A solar charger for efficient solar energy conversion.
- Wide MPPT range of 40 - 500V, adaptable to various voltage inputs.
- Compatible with generators, offering flexible power supply options.
- Comes with a complete CE certification, meeting safety and quality standards.
- Supports both lithium and lead-acid batteries, suitable for different battery types.
- Lithium battery activation function to optimize the usage experience of lithium batteries.
- Removable dust cover for easy maintenance and cleaning.
- WiFi monitoring function for remote intelligent management.
Technical Data
| Model | J4000HC |
|---|---|
| Rated Input Voltage (VAC) | 208/220/230/240;L+N+PE |
| Voltage Range (VAC) | 90~280+3(normal mode);170~280+3(UPS mode) |
| Frequency(Hz) | 50/60 (Auto Adaptive) |
| Rated Capacity | 3.6kW/4kVA |
| Surge Power (kVA) | 8 |
| Voltage (VAC) | 208/220/230/240 |
| Power Factor(PF) | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time(ms) | 10 (normal mode)/10 (UPS mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity (Battery Mode) | 60s@102%~110% load; 10s@110%~130% load; 3s@130%~150% load; 0.2s@>150% load |
| Max. Efficiency (Battery Mode) | 92.7%@24VDC |
| Parallel Quantity | NA |
| Solar Charger Type | MPPT |
| Max PV input Current / Input Power | 18A/5000W |
| MPPT Range@Operating Voltage (VDC) | 40~450 |
| Max PV Open Circuit Voltage(VDC) | 500 |
| Max PV Charge Current (A) | 100 |
| Max AC Charge Current (A) | 100 |
| Max. Charge Current (PV + AC)(A) | 100 |
| Rated Voltage(VDC) | 24 |
| Floating Charge Voltage (VDC) | 27 |
| Overcharge Protection (VDC) | 30.5 |
| Battery Type | Lithium and Lead - acid |
| HMI | LCD |
| Interface | RS485/RS232/USB/Dry Contact |
| Monitoring | WiFi (Optional) |
| Ingress Protection | IP21 |
| Operating Temperature | -10℃~50℃ |
| Relative Humidity | 5%~95%(Non - condensing) |
| Storage Temperature | -15℃~60℃ |
| Net Weight (kg) | 6.4 |
| Dimensions (WHD) | 490306115mm(without bracket) |
| Max. Operating Altitude | 4000m(Derating above 1000m) |
